A pedal sealer closes an open bag, while a shrink chamber machine seals and tightens compatible film around a product inside a heated chamber. The right choice depends on your film, product dimensions, required presentation, cycle time, labour, and whether you need shrinking as well as sealing.
Key takeaways
- Choose a pedal sealer for prepared bags and a shrink chamber for cut-and-shrink film packs.
- Select polyethylene, PVC, or polyolefin film based on product and sealing temperature.
- Check chamber dimensions, seal length, and product clearance—not cabinet size alone.
- Request test packs, cycle output, electrical details, and service terms before ordering.
How the two machines handle one pack
A pedal sealer closes a prepared bag; a shrink chamber machine seals, cuts, contains, and shrinks film around the product. That difference controls how the operator loads, starts, unloads, and repeats each cycle in a shrink sealing machine comparison.
1. Pedal sealer: Insert the product into a pre-made bag or liner. Position the open mouth flat across the heated jaws, keeping the film free of folds, dust, and product. Press the foot pedal to close the jaws, wait through the programmed dwell period, then remove the sealed bag. Open the next bag and repeat.
The machine normally provides heat sealing only; if the film must tighten around the product, add a separate shrink tunnel, hot-air gun, or other heating process.

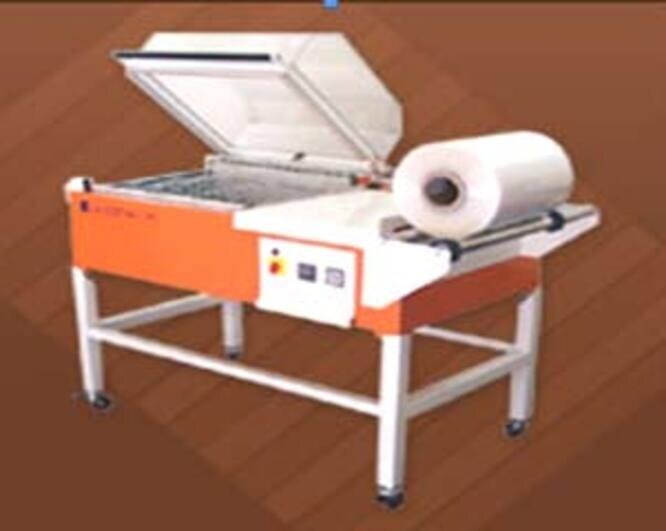

2. Shrink chamber machine: Place the product inside shrink film or a film sleeve, then position it inside the chamber without letting the load obstruct the sealing bar or lid. Close the lid; the machine seals and cuts the film, then holds the pack through the heated shrink dwell.
Open the lid after the cycle and remove the finished pack. Load the next product and repeat after the chamber returns to its operating condition.
A chamber combines sealing or cutting with containment and shrinking in one cycle. A pedal sealer is quicker when you only need a closed bag, while the chamber suits products that need taut film presentation.
Choose the film before you choose the sealer
A pedal sealer handles PE, PP, laminated pouches, coated barrier structures, and other heat-sealable bags when their seal layer matches the jaws. Ask the film supplier to confirm sealing at the machine’s temperature, dwell time, and pressure; a film that looks compatible can still produce weak leaks.
| Film | Best fit | Main trade-off |
|---|---|---|
| PE or PP | Open-mouth bags and liners on pedal sealers | Sealable, but not necessarily shrinkable |
| Laminated or barrier film | Pouches needing oxygen, moisture, or light protection | The inner seal layer controls compatibility |
| Polyolefin shrink film | Clear, wide presentation range in a shrink chamber machine | Requires the correct shrink temperature and profile |
| PVC shrink film | Strong shrink effect and presentation | Requires suitable ventilation and material handling |
| PE shrink film | Tough, heavy bundles | Different shrink conditions and a less polished appearance |
A shrink chamber requires PVC, polyolefin, or suitable PE shrink film matched to its sealing wire and shrink profile. Ordinary non-shrink PE may seal but will not tighten around the product, which is the central distinction in a shrink sealing machine comparison.
Dust, oil, moisture, folded film, and excessive overlap create weak or leaking seals. Product contact with the hot knife can burn a hole or drag the film out of alignment. Raising temperature alone is not a fix; it can thin, scorch, or perforate the film.
Clean the seal area, flatten the layers, control overlap, and confirm settings with a sample run.
Compare the dimensions that determine usable capacity
A product fits reliably only when its dimensions match the machine’s usable sealing envelope, not its advertised category. A pedal sealer machine manufacturer in Delhi should state sealing length, seal width, temperature-control method, pedal action, jaw clearance, power supply, and compatibility with your intended film.
| Machine | Dimensions and specifications to compare | Why they matter |
|---|---|---|
| Pedal sealer | Seal length, seal width, jaw clearance, temperature control, pedal action, power supply, film compatibility | The bag mouth must reach across the jaws, remain flat, and receive consistent pressure and heat |
| Shrink chamber machine | Chamber length, chamber width, usable height, sealing-bar length, maximum product dimensions, maximum pack size | The wrapped product must fit the floor, close under the lid, and remain safely spaced from heating elements |
Industrial pedal sealers commonly offer seal lengths around 300–800 mm and seal widths around 2–5 mm. These are reference ranges, not proof of suitability. A nominal 450 mm seal does not accept a 450 mm-wide product after allowing for film folds, gussets, product height, clearance, and the lid.
Run a live test before ordering a shrink chamber machine. Use the actual product wrapped in the actual film, because a box that fits the chamber floor can still stop the lid closing or place film too close to the heaters. Record:
- Sealed dimensions and seal integrity
- Film folds, wrinkles, or shrink damage
- Lid clearance and distance from heating elements
- Maximum pack size at the required presentation standard
Match the machine to output, labour, and pack presentation
Choose a pedal sealer for open-mouth bags, liners, and pre-made pouches when sealing alone is enough. Choose a shrink chamber for rigid products, cartons, trays, bundles, or irregular loads that need taut, retail-style film.
| Option | Output advantage | Best fit |
|---|---|---|
| Pedal sealer | Shorter sealing cycle and little trim waste | Bag, liner, or pouch closure |
| Shrink chamber | One process seals, cuts, contains, and shrinks film | Retail-style packs and mixed shapes |
A chamber cycle includes lid closing, heat-up, sealing, shrinking, cooling, and lid opening. A pedal cycle can be shorter when no shrinking follows, but a pedal sealer needs a separate tunnel or hot-air tool when the film must tighten around the product.
In a shrink sealing machine comparison, include the cost of that downstream equipment, ventilation, extra labour, and film waste. An L-seal chamber can leave a film web or offcut; a correctly sized pre-made bag can reduce waste.
Run a live trial and record:
- Warm-up time, loading time, operator movements, and unloading time
- Seal dwell, shrink dwell, and recovery after repeated cycles
- Finished packs per hour, film consumption, seal integrity, and presentation
- Labour required for film handling, plus ventilation and electrical load
Ask for continuous-duty limits, not just instantaneous sealing time. A search for an industrial sealing machine in Delhi should end with timed production evidence, because catalogue sealing speed excludes loading, handling, and recovery.
What to request from a Delhi manufacturer before ordering
1. Request a live test before choosing a shrink chamber machine or pedal sealer machine manufacturer in Delhi. Send the actual product, film, product dimensions, target appearance, required seal width, and production rate; catalogue photographs do not prove suitability.
2. Require the written quotation to state chamber dimensions or seal length, usable product height, film compatibility, temperature range, connected load, supply voltage and frequency, earthing requirements, warm-up time, recommended duty cycle, and safety features. A 450 mm seal is not proof that a 450 mm-wide product will fit.
3. For a smaller machine, read the nameplate and installation sheet. Confirm that they specify 230 V, 50 Hz single-phase power instead of assuming that supply will work.
4. Ask the pedal sealer machine manufacturer in Delhi or any industrial sealing machine in Delhi supplier about over-temperature protection, hot-element guarding, emergency isolation, replacement heating wires, PTFE or Teflon coverings, blades, thermocouples, and control parts. Confirm service response times and whether replacement parts are interchangeable.
5. During the trial, record seal integrity, shrink defects, film usage, electrical load, warm-up and recovery time, cycle time, and output after repeated operation. A machine that produces one attractive pack but drifts during a timed run is not ready for production.
6. Use the same checklist when comparing ASN Packaging PVT LTD with another supplier: judge the documented test result, duty-cycle statement, and support plan rather than the supplier’s “industrial” label.
Related products
 | ₹35000 We are engaged in manufacturing of qualitative range of shrink packaging Machines, which provide solutions for a wide variety of packaging... View product → |
 | Shrink L-Sealer Machines It is Suitable for Small Bags Packing And Adopts Electronic Constant temp. control System and variable speed adjusting transmission mechanism . View product → |
Frequently asked questions
How does a shrink chamber machine differ from a pedal sealer?
A pedal sealer closes a prepared bag with a heat bar. A shrink chamber machine seals and cuts centre-fold film, then applies heat to shrink it around the product in one enclosed cycle.
Which film should you choose for a shrink chamber machine?
Choose film according to the product, required presentation, sealing temperature, and handling conditions. Common options include polyethylene, PVC, and polyolefin film; confirm compatibility through a pack test.
Which machine dimensions determine usable pack capacity?
Check the chamber’s internal length, width, and height, plus seal-bar length and product clearance. External cabinet dimensions do not show the maximum practical pack size.
What should you request from a Delhi machine manufacturer before ordering?
Request a live or recorded test using your product and film, rated cycle output, electrical specifications, seal-bar details, installation requirements, warranty terms, spare-parts availability, and service response arrangements.
