A pedal sealer quotation does not automatically include the equipment needed to shrink film around a carton, tray, or bag. You will need to match the product envelope, film, sealing method, tunnel capacity, labour, and electrical supply before comparing machines. By the end, you will have a practical specification for trials and quotations.
Key takeaways
- Measure pack dimensions, weight, stability, edges, overlap, and available machine space.
- Choose a pedal sealer for low volume, an L-sealer for faster batches, or automation for continuous output.
- Match polyethylene, PVC, or polyolefin film to the product and sealing geometry.
- Request a live product trial, tunnel results, spare-parts list, and service response terms.
Start with the Product, Pack Rate, and Available Space
Measure the loaded product before comparing machine types. Record its length, width, height, weight, stability, sharp edges, required film overlap, and whether cartons need corner protection. A carton that tips, crushes, or has a surface unsuitable for heat may be the wrong shrink-wrapping application.
1. Define the output: packs per hour, batch size, peak demand, product orientation, spacing between packs, and the number of operators available. For a semi-automatic pedal system, operator loading often limits production before jaw heating does. Request a timed trial using your products, film roll, orientation, spacing, and actual operator count.
2. Specify the film: centerfold or single-wound, film width, layflat width, thickness, perforation, and shrink percentage in the machine and transverse directions. Centerfold film needs film folding and L-sealing; single-wound film needs a side-seal or flow-wrap arrangement. Shrink direction affects wrinkles, corner coverage, and label distortion.
3. Map the installation: available floor length and width, working clearances, electrical supply, ventilation, conveyor height, operator skill, and future capacity. Record the maximum loaded product envelope, including film clearance, because a tunnel aperture that barely accepts the pack can catch curtains or jam the conveyor.
A pedal sealer only actuates sealing jaws; it does not automatically shrink film. Ask whether any quotation includes film feeding, trimming, sealing, tunnel heating, and conveyor transport. This information gives your shrink wrapping machine selection a measurable starting point instead of a machine-type guess.
Choose Between a Pedal Sealer, L-Sealer, and Automatic Line
Choose by completed packs per minute, not the sealing jaw’s advertised cycle. A pedal system suits low-volume work, changing pack sizes, and products an operator can load and align quickly. It becomes a bottleneck when loading, film positioning, trimming, tunnel dwell, and unloading consume more time than sealing.
| Option | Best fit | Main limitation |
|---|---|---|
| Pedal sealer plus separate heat source | Open bags, pouches, occasional cartons, and short runs | One operator performs loading and sealing; it is not automatic carton overwrapping |
| L-sealer plus shrink tunnel | Center-folded film around stable cartons or trays | The operator still places each pack, so loading rate controls output |

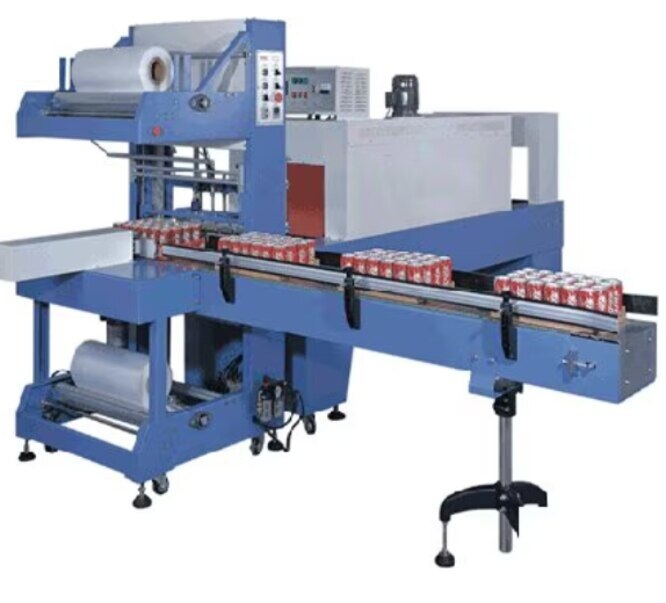

| Automatic web sealer and tunnel line | Repeated carton sizes, continuous production, and limited operator handling | Higher cost, longer changeovers, and less flexibility for irregular products |
A pedal sealer does not shrink film by itself. The foot pedal usually closes the jaws; shrinking requires a recirculating hot-air tunnel or a controlled heat gun.
A quotation from a pedal sealer machine manufacturer for shrink wrapping options in Pune must state whether it includes film feeding, sealing, film trimming, tunnel heating, conveyor transport, and cooling.
Request a timed trial with your actual carton dimensions, product orientation, film roll, pack spacing, and operator count. Record finished packs per minute, not empty-machine cycles.
- Choose an L-sealer for center-folded film.
- Choose side-seal or flow-wrap equipment for single-wound film, long products, or continuous packs.
- Reject the arrangement if the carton shifts, corners remain uncovered, or the operator cannot sustain the required pace safely.
Match the Film and Sealing Geometry to the Pack
Film and seal geometry determine whether the machine can wrap your pack at all. Center-folded polyethylene, polyolefin, or PVC film needs a film-folding path and L-sealing jaws; single-wound film needs a side-seal or flow-wrap arrangement. A pedal sealer for open bags cannot automatically handle carton overwrapping.
Specify these film and sealing measurements before comparing quotations:
- Film type, thickness, shrink percentage in both directions, and whether perforations are present
- Roll width, layflat width, roll diameter, and core diameter
- Required seal length, including the longest side that must close in one stroke
- Product width, height, length, weight, and the clearance needed around each edge
The seal bar must exceed the pack’s sealing span without wasting excessive film. A short bar forces multiple seals or leaves an unsealed corner; a bar that is too long increases equipment size and operator reach.
For cartons, center-fold film with an L-sealer followed by a shrink tunnel is the usual arrangement. Stabilise tall or unstable cartons before sealing, because film tension can tilt them or pull them across the conveyor. Shrink wrapping equipment for cartons also needs enough film overlap and tunnel aperture clearance for hot-air circulation.
A shrink wrapper for bags and trays must handle shifting bags, tray flanges, sharp corners, and trapped air. Test actual packs for continuous seals, corner punctures, weak areas, air pockets, and alignment after shrinking. Long or continuous products suit side-seal equipment better than a basic pedal-operated jaw.
Size the Shrink Tunnel and Prove the Result with a Product Trial
A tunnel that barely accepts the carton is undersized. Measure the loaded product envelope—maximum length, width and height—then add film overlap and clearance for hot-air circulation. Tight apertures can catch curtains, create cold corners and jam the conveyor despite matching nominal carton dimensions.
1. Ask for a trial using your actual carton, film roll, film thickness, operator count, product orientation and pack spacing. Record completed packs per minute across loading, film positioning, sealing, trimming, tunnel dwell and unloading; a high jaw-cycle figure is not finished throughput.
2. Set tunnel temperature and conveyor speed on the trial machine, then increase heat only enough to remove wrinkles. Check that labels, inks, windows, hot-melt glue joints and moisture-sensitive board survive the exposure.
3. Inspect every finished pack for tight corners, open seams, film holes, carton deformation, barcode readability and stable stacking. Reject a result that looks acceptable only after slowing the conveyor below your intended rate.
4. Confirm safety before purchase: guarded heating elements, insulated access panels, emergency-stop controls, protected conveyor pinch points and a documented electrical load. Test access to the sealing jaw and tunnel while wearing the required protective equipment.
Shrink wrapping machine selection also requires a complete quotation. Confirm whether the pedal-operated unit includes film feeding, sealing, trimming, tunnel heating and conveyor transport; a foot pedal normally actuates the jaws, not the shrinking process. Get the trial settings and measured pack rate in writing.
Compare Quotations and After-Sales Support in Pune
A low price means little if the quotation excludes the shrink tunnel, film trimming, or conveyor transport. Ask every pedal sealer machine manufacturer in pune to identify each included module, its working dimensions, and the output achieved during a trial with your product, film roll, pack spacing, and actual operator count.
| Option | Request in the quotation | Why it matters |
|---|---|---|
| Pedal sealer plus tunnel | Seal length, jaw actuation, film feeder, trim method, tunnel chamber size, conveyor load, temperature range | Confirms whether you are buying shrink wrapping or only bag sealing |
| L-sealer arrangement | Centerfold-film width, sealing-bar dimensions, tunnel power, film perforation compatibility | Prevents a single-wound film from being quoted for an L-sealer |
| Automatic web sealer | Product spacing, in-feed height, speed range, guarding, and changeover time | Shows whether automation removes the operator-loading bottleneck |
Request these commercial and service details in writing:
- Itemised price, GST and freight basis, installation charges, commissioning time, payment milestones, warranty duration, exclusions, and delivery date.
- Electrical rating, phase, connected load, earthing point, emergency-stop behaviour, overload protection, guarded sealing jaws, guarded rollers, and tunnel burn protection.
- A timed trial using your product and film, with sealed-pack photographs, packs per minute, scrap rate, and the number of operators required.
- Spare-part prices and availability for heater elements, Teflon, thermocouples, belts, sensors, and cutting blades; also ask for Pune response time and training coverage.
Whether you compare ASN Packaging PVT LTD with another pedal sealer machine manufacturer for shrink wrapping options in pune, use the same trial conditions and scope sheet. Otherwise, the faster-looking quotation may simply omit the work your team must perform.
Related products
 | ₹35000 We are engaged in manufacturing of qualitative range of shrink packaging Machines, which provide solutions for a wide variety of packaging... View product → |
 | ₹335000 The unit packs duly collated Automated & put in to In-feed Line Conveyor. The sealing shall be WEB SEALER suitable for above product. View product → |
Frequently asked questions
How do I begin shrink wrapping machine selection?
Measure the loaded product’s length, width, height, weight, stability, sharp edges, film overlap, and need for corner protection. Check whether heat could damage the product or its carton before comparing machines.
When should I choose a pedal sealer instead of an L-sealer or automatic line?
Choose a pedal sealer for low-volume work and manual loading. Choose an L-sealer for repeat batches that need faster, more consistent film cutting and sealing. Choose an automatic line when pack rates, labour savings, and integration with conveyors justify the added cost and space.
What film should I use for cartons, bags, and trays?
Select film based on product shape, required strength, visibility, shrink response, and sealing temperature. Check film width, thickness, centre-fold format, and compatibility with the sealing bar before ordering equipment.
How do I size a shrink tunnel?
Allow clearance around the largest loaded pack, then match tunnel chamber dimensions, conveyor width, conveyor speed, and heat capacity to the required pack rate. Test the actual product to check seal strength, shrink uniformity, wrinkles, and heat damage.
What should I compare in quotations from a Pune supplier?
Compare machine dimensions, electrical load, sealing length, film limits, tunnel specifications, warranty, installation, operator training, spare parts, preventive maintenance, and service response times. Ask for a product trial and written scope of supply.
